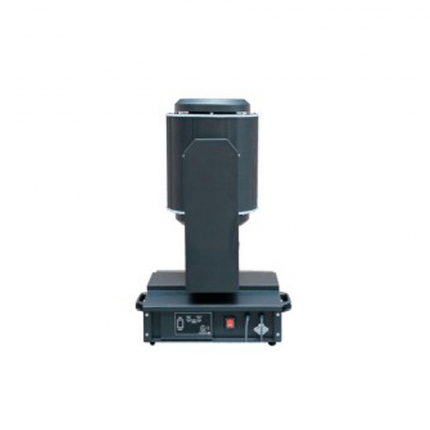

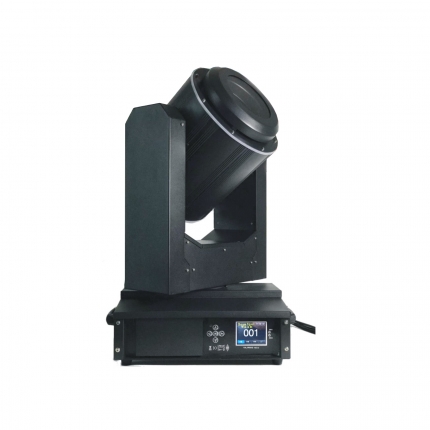

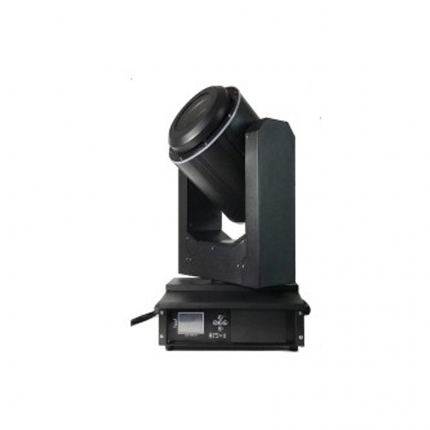

Beam Moving Head Light MH-S008

350W Outdoor Beam Moving Head
*Highly elastic repulsion seams
*Highly reliant cooling system
*Fully enclosed internal parts
* Water proof DMX input and output


- Lamp type: MSD 17r 350W
- Color: 14 kinds of color with blank
- Gobo: 17 fixed pattern with blank
- Mirror: high precision agglutination optical lens
- Soft light effect: soft light flare angle can be adjusted
- Focus: linear focus 10m @ 1600000lux
- Prism: 3 face prism and prism rotation and 16 prism macro
- Beam angle: parallel 0-2.3°
- DMX Channel: 16/20CH
- Control Mode: standard DMX512/ auto/ sound controlled/ master slave
- Number of motors: 13 super mute motors, two three-phase motors. 16 bit driver
- Pan movement: 540°
- Tilt movement:270° interlocks for axis
- Other Features: remote control lamp switch function, use time display lamps, LCD screen
- Net Weight 34kg

SPECIFICATIONS:

  • Code: Beam Moving Head Light MH-S008
  • Category: Stage and Event Lights
  • Lighting Classification: Outdoor Beam Moving Head Light
  • Series Classification: Outdoor Beam Moving Head Light
  • Wattage: 350W
  • Operating Voltage: AC100-240V
  • Materials: ABS plastic + Metal
  • CCT: 8500K
  • Lumens: 10m@1600000Lux
  • Cut-Out Size: n/a
  • Dimensions: 456 x 406 x 406mm
  • Beam Angle: 0-2.3°
  • CRI: 70Ra
  • IP Rating: IP65
  • LED Brand: n/a
  • Driver Brand: n/a
  • Rate Lifespan: 50,000 hours
  • Tiltability: Yes
  • Dimmability: Yes CH
  • Installation Methods:
    • Surface Mounted
