50W-HJ-ARC-60120-50
- A sleek, contemporary appearance Arc LED Troffer is designed to enhance office, retail, healthcare interiors with high efficiency.
-Power supply features with flicker-free design protect human eyes
- Integrated lay-in troffer with only 2.83 inch thickness makes installation easier
-Higher PF>0.95 draws less current, decreases the energy lost in distribution system and charges less cost
- Embedded sensors (occupancy sensing & daylight harvesting) are available. 0-10V or wireless dimming are for options
SPECIFICATIONS:
- Code: 50W-HJ-ARC-60120-50
- Category: Indoor Lights
- Lighting Classification: Troffer Lights
- Series Classification: Anti-Glare Arc Series
- Wattage: 50W
- Operating Voltage: AC 100-240V
- Materials: Aluminum + PC
- CCT: WW: 3465±245K /CW: 3985±175K /CW: 4503±243K/DL: 5028±285K
- Lumens: 6500lm
- Cut-Out Size: 592x1192mm

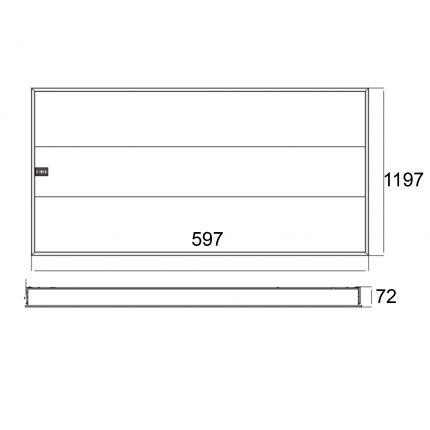

- Dimensions: 597x1197x72mm
- Beam Angle: 140°
- CRI: 80Ra
- IP Rating: IP20
- LED Brand: 384pcs 2835SMD
- Driver Brand: n/a
- Rate Lifespan: 50,000hours
- Tiltability: No
- Dimmability: Non-dim/ Dim
- Special Feature: - 0-10V Dimmable / Occupancy Sensor+ Daylight Harvesting sensor
-
Installation Methods:
- Recessed
