DLCTL is an indoor sensor module with active motion detectors with HF system 5.8GHz.

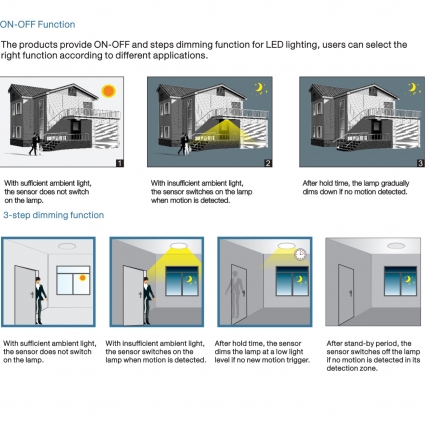

The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.
Also, the 1-10V interface in the sensors can match up with
stand-alone daylight sensor , and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.
FEATURES:
- Automatic dimming when used in combination with 1-10V
dimmable LED drivers or ballasts.
- Built-in adjustable daylight sensor.

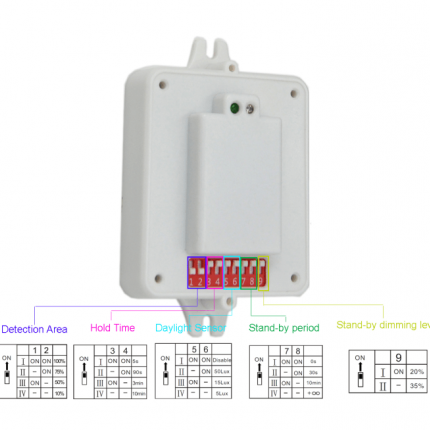

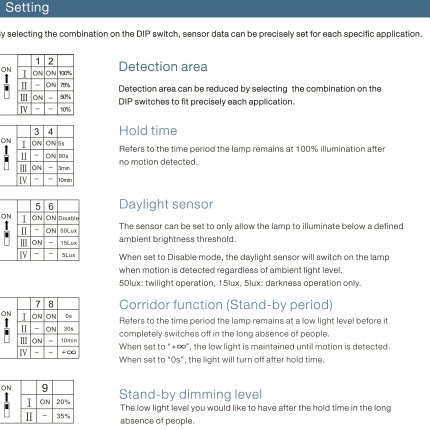

- Detection area, time delay and daylight threshold can be
precisely set via DIP switch.

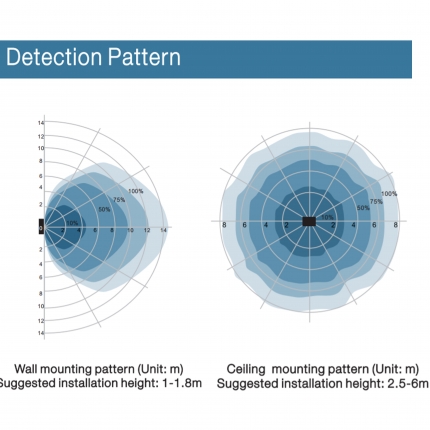

- Wide detection area, range up to 16m in diameter and
mounting height 6M Max. suitable for indoor use.
- Optional mounting brackets for different application.
